SS40IHI401000A
Model Number :SS40IHI401000A Product Group :Standard Compact Driver Application Area :Indoor Output Power :28-40W Output Current :700-1000mA Output Voltage :27-40V Power Factor :HPF Operating Mode :Constant Current Type Of Protection :IP20 SELV :SELV60 Height :31mm Lifetime :30000h

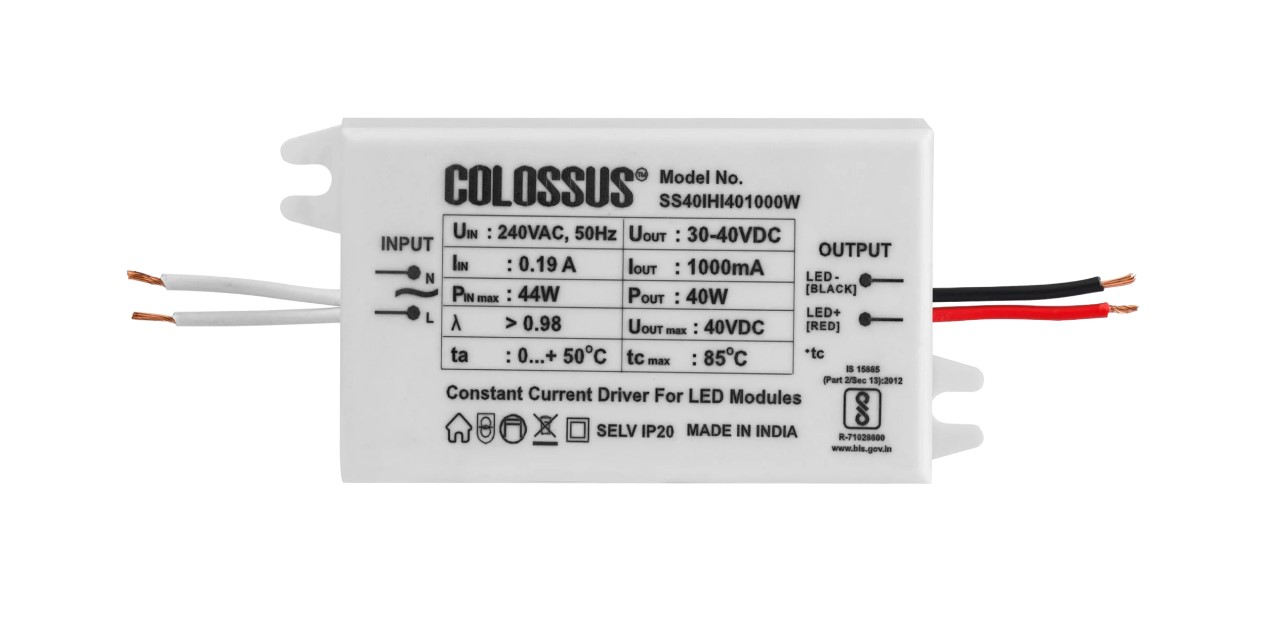

SS40IHI401000W
Model Number :S40IHI401000W Product Group :Standard Compact Driver Application Area :Indoor Output Power :40W Output Current :1000mA Output Voltage :30-40V Power Factor :HPF Operating Mode :Constant Current SELV :SELV60 Height :33mm Lifetime :30000h

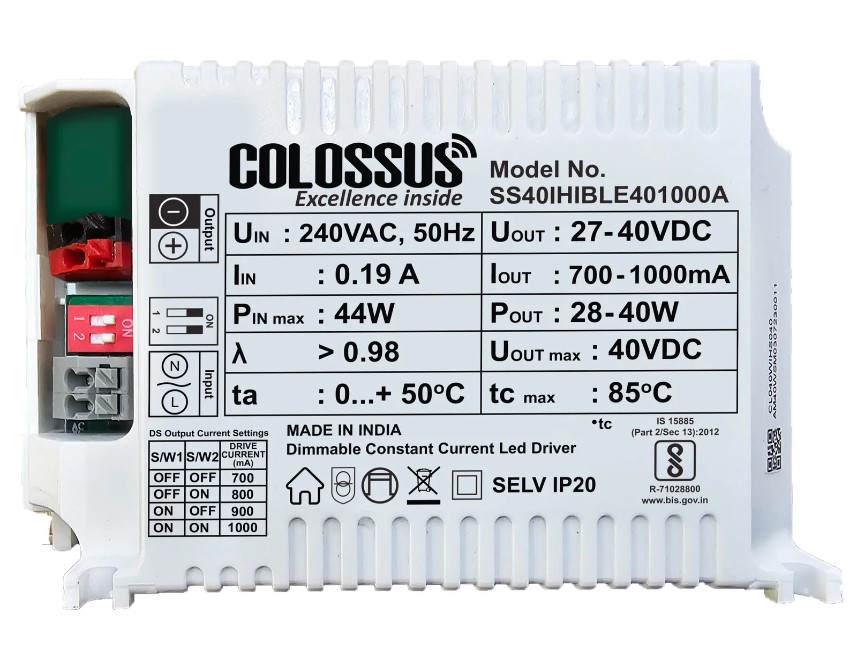

SS40IHIBLE401000A
Model Number :SS40IHIBLE401000A Product Group :Smart Compact Driver Application Area :Indoor Dimming Interface :BLE MESH Features :Dimable Output Power :28-40W Output Current :700-1000mA Output Voltage :27-40V Power Factor :HPF Operating Mode :Constant Current Type Of Protection :IP20 SELV :SELV60 Height :32mm Lifetime :30000h Powered By :Casambi, Plexilent, Tuya
SS40IHIBLECCT401000A
Model Number :SS40IHIBLECCT401000A Product Group :Smart Compact Driver Application Area :Indoor Dimming Interface :BLE MESH Features :2xCH, Dimable Output Power :28-40W Output Current :700-1000mA Output Voltage :27-40V Power Factor :HPF Operating Mode :Constant Current Type Of Protection :IP20 SELV :SELV60 Height :32mm Lifetime :30000h
US08IHI40200F
Product Description • Constant current driver for led modules • Input voltage 240VAC • High efficiency >85%(@100% Load) • Power factor >0.98,THD<10%(@100%Load) • For use in combination with luminaries of protection class II. • Protection against Abnormal Operating Conditions Like Input Over Voltage Protection, Under Voltage Protection, Short Circuit Protection, Open Voltage Protection, Overload Protection. • Surge protection 4KV • Nominal Life Time: 30,000 hours @ tc ≤ tc max Functions • Application oriented operation for maximum compatibility
US08IPI40200F
Product Description . Constant current driver for led modules . Input voltage 240VAC . High efficiency >85%(@100% Load) . Power factor >0.80(@100%Load) . For use in combination with luminaries of protection class II. . Protection against Abnormal Operating Conditions Like Short Circuit Protection, Brownout Protection, Open Voltage Protection, Overload Protection. . Surge protection 2.5KV . Nominal Life Time: 30,000 hours @ tc ≤ tcmax
US10IHI40250F 250mA
Product Description . Constant current driver for led modules . Input voltage 240VAC . High efficiency >86%(@100% Load) . Power factor >0.98,THD<10%(@100%Load) . For use in combination with luminaries of protection class II. . Protection against Abnormal Operating Conditions Like Input Over Voltage Protection, Under Voltage Protection, Short Circuit Protection, Open Voltage Protection, Overload Protection. . Surge protection 4KV . Nominal Life Time: 30,000 hours @ tc ≤ tcmax
US10IPI40250F 250mA
Product Description . Constant current driver for led modules . Input voltage 240VAC . High efficiency >86%(@100% Load) . Power factor >0.80(@100%Load) . For use in combination with luminaries of protection class II. . Protection against Abnormal Operating Conditions Like Short Circuit Protection, Brownout Protection, Open Voltage Protection, Overload Protection. . Surge protection 2.5KV . Nominal Life Time: 30,000 hours @ tc ≤ tcmax
US12IHI40300F 300mA
Product Description . Constant current driver for led modules . Input voltage 240VAC . High efficiency >86%(@100% Load) . Power factor >0.98,THD<10%(@100%Load) . For use in combination with luminaries of protection class II. . Protection against Abnormal Operating Conditions Like Input Over Voltage Protection, Under Voltage Protection, Short Circuit Protection, Open Voltage Protection, Overload Protection. . Surge protection 4KV . Nominal Life Time: 30,000 hours @ tc ≤ tcmax

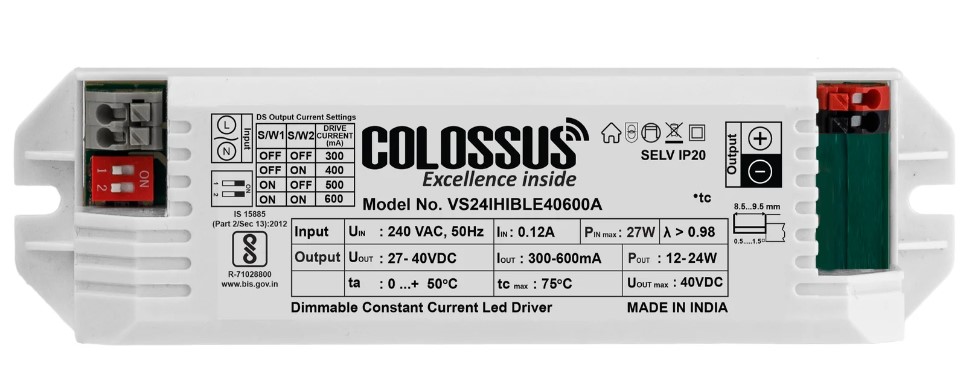

VS24IHIBLE40600A
Model Number :VS24IHIBLE40600A Product Group :Smart Linear Driver Application Area :Indoor Dimming Interface :BLE MESH Features :Dimable Output Power :12-24W Output Current :300-600mA Output Voltage :27-40V Power Factor :HPF Operating Mode :Constant Current Type Of Protection :IP20 SELV :SELV60 Height :28mm Lifetime :30000h Powered By :Casambi, Plexilent, Tuya

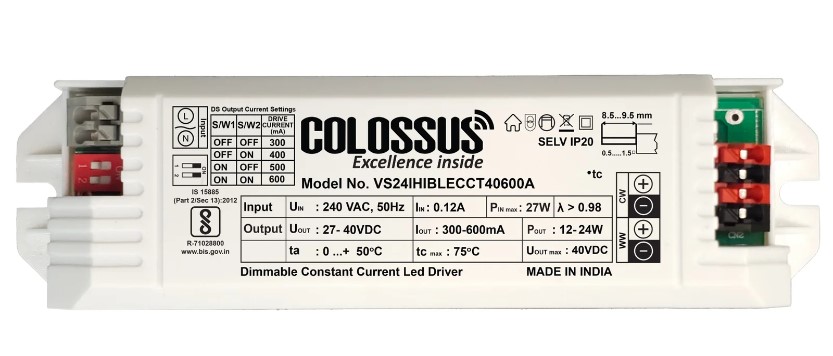

VS24IHIBLECCT40600A
Model Number :VS24IHIBLECCT40600A Product Group :Smart Linear Driver Application Area :Indoor Dimming Interface :BLE MESH Features :2xCH, Dimable Output Power :12-24W Output Current :300-600mA Output Voltage :27-40V Power Factor :HPF Operating Mode :Constant Current Type Of Protection :IP20 SELV :SELV60 Height :28mm Lifetime :30000h Powered By :Casambi, Plexilent, Tuya

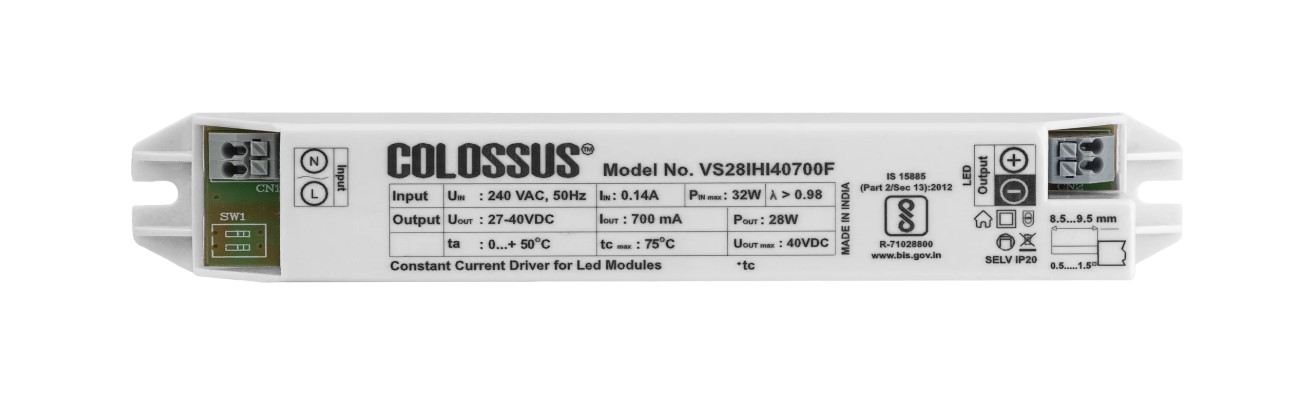

VS28IHI40700F
Model Number :VS28IHI40700F Product Group :Standard Linear Driver Application Area :Indoor Output Power :28W Output Current :700mA Output Voltage :27-40V Power Factor :HPF Operating Mode :Constant Current Type Of Protection :IP20 SELV :SELV60 Height :25mm Lifetime :30000h
