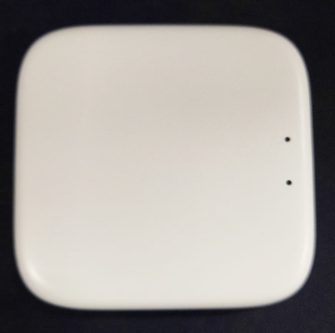

Physical Features |
|
Dimensions (H x W x D) |
15.3 mm x 61.8 mm x 62 mm |
Net weight |
34 g |
Status indicator |
Two LED indicators: Wi-Fi and Bluetooth |
Operation button |
One power/reset button |
Power supply |
5 V DC power over the Micro USB port |
Working current |
< 1 A |
Adapter output |
5 V1A |
Working temperature |
–10°C to +55°C |
Working humidity |
10% to 90% RH (non-condensing) |
Storage temperature |
–20°C to +60°C |
Storage humidity |
5% to 90% RH (non-condensing) |
Port |
One Micro USB port |
Wireless technology |
Wi-Fi: 802.11b/g/n |
ZigBee:802.15.4 |
|
BLE: 5.0 |
RF Performance |
||
|
WBRG1 |
ZS3L |
Wireless frequency |
2.400 ~2.4835GHz |
2.400 ~ 2.480GHz |
Network standards |
WIFI 802.11 b/g/n |
IEEE 802.15.4 |
Transmit power |
+20dBm MAX |
+20dBm MAX |
Number of channels |
CH1-CH14 |
CH11 - CH26 |
Bluetooth LE standards |
Bluetooth LE5.0 |
NA |
Transmission rate |
11b:1,2,5.5, 11 (Mbps) 11g:6,9,12,18,24,36,48,54(Mbps) 11n:HT20 MCS0~7 11n:HT40 MCS0~7 |
250Kbps |
Antenna type |
Built-in onboard antenna |
Built-in onboard antenna |
Antenna gain information |
1.05 dBi |
1.0 dBi |
Network Performance |
||
Wireless encryption |
AES 128bit encryption |
|
WEP/WPA/WPA2/WPA2 PSK(AES) |
||
Maximum number of connections |
Maximum number of nodes: 128 |
