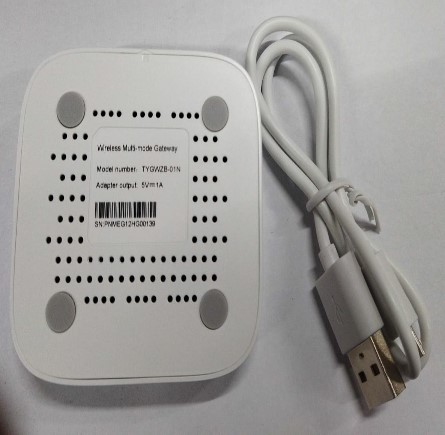

Wireless Multi-mode Gateway Specifications TYGWZB-01N

3.Feature 1) Remote Control：Users can control Zigbee, Mesh, single point and Beacon devices through the gateway. 2) One-Key Pairing：Short press the button on the gateway to enter the long-term pairing mode (the indicator light will flash), and last for 1 hour. At this point, if the sub-devices are in pairing mode, the sub-devices will be added automatically. It supports multiple devices to be added at the same time. You can press the button once again to turn off the one-key pairing mode. 3) Cloud scene/automation: Through the scene and automation settings in the APP, the sub-device under the gateway can link with other smart devices(such as Wi-Fi plug). 4) Local scene/automation: The gateway prioritizes local scene/automation instead of Cloud scene/automation, which reduces the delay. The local scene/automation works well even when the external network is disconnected. 5) OTA: The gateway supports OTA of itself and sub-devices.
Wireless Multi-mode Gateway Specifications TYGWZB-01N

REMOTE (TUYA & PLEXILENT)

The Plexilent remote, leveraging BLE Mesh Technology, provides seamless control over lighting devices without the need for a smartphone. This advanced remote allows users to perform a variety of functions, including powering on/off, dimming, adjusting CCT, and changing the colors of specific groups. Notably, all actions are applicable solely to devices organized within groups. Offering a broad spectrum of colors, the remote delivers a vibrant and immersive lighting experience. With an effective range of 15 meters, it ensures reliable control of any connected device within the same network. Dedicated Group Control Buttons Warm/Cool Toggle Endless Color Selection Easy Group Configuration Swift Pairing CONTENT • Button Specification • Usage - Pairing Remote - Group Control - All Device Control - Function Keys - Unpairing Remote
REMOTE (TUYA & PLEXILENT)

VS60ISIBLE5CH242500F

Model Number :VS60ISIBLE5CH242500F Product Group :Smart Linear SMPS Isolation :Isolated Application Area :Indoor Dimming Interface :BLE MESH Features :2xCH, 3xCH, 4xCH, 5xCH Output Power :60W Output Current :2500mA Output Voltage :24V Power Factor :LPF Operating Mode :Constant Current, Constant Voltage Type Of Protection :IP20 SELV :SELV60 Height :30mm Lifetime :30000h Powered By :Casambi, Plexilent, Tuya
VS60ISIBLE5CH242500F

VS60ISIBLE5CH125000F

Model Number :VS60ISIBLE5CH125000F Product Group :Smart Linear SMPS Isolation :Isolated Application Area :Indoor Dimming Interface :BLE MESH Features :2xCH, 3xCH, 4xCH, 5xCH Output Power :60W Output Current :5000mA Output Voltage :12V Power Factor :LPF Operating Mode :Constant Current, Constant Voltage Type Of Protection :IP20 SELV :SELV60 Height :30mm Lifetime :30000h Powered By :Casambi, Plexilent, Tuya
VS60ISIBLE5CH125000F

VS30ISIBLE5CH122500F

Model Number :VS30ISIBLE5CH122500F Product Group :Smart Linear SMPS Isolation :Isolated Application Area :Indoor Dimming Interface :BLE MESH Features :2xCH, 3xCH, 5xCH Output Power :30W Output Current :2500mA Output Voltage :12V Power Factor :LPF Operating Mode :Constant Current, Constant Voltage Type Of Protection :IP20 SELV :SELV60 Height :25mm Lifetime :30000h Powered By :Casambi, Plexilent, Tuya
VS30ISIBLE5CH122500F

VS36NHIBLECCT80450F

Model Number :VS36NHIBLECCT80450F Product Group :Smart Linear Driver Isolation :Non-Isolated Application Area :Indoor Dimming Interface :BLE MESH Features :2xCH, Dimable Output Power :36W Output Current :450mA Output Voltage :66-80V Power Factor :HPF Operating Mode :Constant Current Type Of Protection :IP20 Height :28mm Lifetime :30000h Powered By :Casambi, Plexilent, Tuya
VS36NHIBLECCT80450F

VS36NHIBLE80450F

Model Number :VS36NHIBLE80450F Product Group :Smart Linear Driver Isolation :Non-Isolated Application Area :Indoor Dimming Interface :BLE MESH Features :Dimable Output Power :36W Output Current :450mA Output Voltage :66-80V Power Factor :HPF Operating Mode :Constant Current Type Of Protection :IP20 Height :28mm Lifetime :30000h Powered By :Casambi, Plexilent, Tuya
VS36NHIBLE80450F

VS40IHIBLECCT401000A

Model Number :VS40IHIBLECCT401000A Product Group :Smart Linear Driver Application Area :Indoor Dimming Interface :BLE MESH Features :2xCH, Dimable Output Power :28-40W Output Current :700-1000mA Output Voltage :27-40V Power Factor :HPF Operating Mode :Constant Current Type Of Protection :IP20 SELV :SELV60 Height :28mm Lifetime :30000h
VS40IHIBLECCT401000A
